Description
Versatile, reliable and consistently awesome
Built to last, this robust drive operates effectively and reliably even with the most demanding applications and in the most challenging environments.

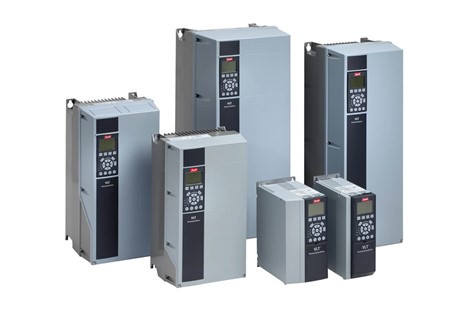

VLT® AutomationDrive takes full advantage of all that the new digital age has to offer to ensure it completely fulfills the requirements of your applications and optimizes your processes throughout the entire lifecycle.
Versatile, reliable and consistently awesome
Built to last, this robust drive operates effectively and reliably even with the most demanding applications and in the most challenging environments.
VLT® AutomationDrive takes full advantage of all that the new digital age has to offer to ensure it completely fulfills the requirements of your applications and optimizes your processes throughout the entire lifecycle.
Its cutting-edge thermal design and unique back-channel cooling make VLT® AutomationDrive one of the most compact and cost-efficient drives in the market. And new intelligent maintenance features and a range of DrivePro® services proactively improve productivity, performance and uptime.
Supply voltages and power range
- 3 x 200-240 V…0.25-37 kW
- 3 x 380-500 V…0.37 kW – 1.1 MW
- 3 x 525-600 V…0.75-75 kW
- 3 x 525-690 V…1.1 kW – 1.4 MW
Low harmonic drive
- 3 x 380-480 V…132-450 kW
12-pulse drive
- 3 x 380-500 V…250 kW – 1 MW
- 3 x 525-690 V…250 kW – 1.4 MW
Features and benefits
A wide operating temperature range of -25°C to +50°C without derating ensures reliable operation when your applications take your drive to the extremes
The flexible, modular design concept provides an extraordinarily versatile motor control solution
The new VLT® Wireless Communication Panel LCP 103 communicates wirelessly with MyDrive® Connect making it easier to perform commissioning, operation, monitoring and maintenance tasks
Back-channel cooling concept reduces costs, energy consumption and the size of the cooling system
New ‘ruggedized’ design reduces the potential negative effects of vibration
The need for PLC capacity is reduced thanks to Smart Logic Control
Low lifetime costs are ensured as the drive is highly resistant to wear and tear
The lifetime of electronics is prolonged due to back-channel cooling for enclosures D, E and F
Commissioning and upgrades are easy due to plug-in technology
High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
VLT® Motion Control Tool MCT 10 offers a customized commissioning experience
Integrated Motion Controller
High-precision positioning and synchronization with reduced costs and system complexity
To optimize performance, many applications across all industry sectors have a need for precise positioning and synchronization. These applications include:
- rotary tables
- packaging machines
- labelling machines
- conveyors
- extruders
- palletizers
To date, positioning and synchronization operations have been performed using servo drives. However, servo equipment is expensive; it is difficult to commission and requires additional cabling. And, as servo drives do not work with open loop control systems, there is a high failure rate. Many applications do not require the high dynamic performance offered by a servo drive. An alternative was to use an AC drive. But, until now, an additional internal or external module or an encoder on the motor was required.
Danfoss Drives has developed an innovative alternative to servo control. The Integrated Motion Controller (IMC) is functionality that enables an AC drive to perform high-precision positioning and synchronization operations without the need for additional modules or hardware. IMC is now configurable in the software of the VLT® AutomationDrive FC 302.
IMC has many advantages. It works with all conventional motor technologies, with closed loop or open loop control, and offers sensorless homing with torque detection. Drives are adapted to the applications through simple parameterization. This means that knowledge of servo technology or programming languages is not required. As no encoder or additional cables are needed, engineering, installation and commissioning time and costs can be reduced.
3D models and drawings
| Type | Name | Updated | Download | File type | |
| M-Drawing – MD | MCAD FC A1 IP20 | ||||
| M-Drawing – MD | MCAD FC A1 IP20 | 01 Oct, 2016 | 2.0 MB | JPG | |
| M-Drawing – MD | MCAD FC A1 IP20 | 01 Oct, 2016 | 2.7 MB | DXF | |
| M-Drawing – MD | MCAD FC A1 IP20 | 01 Oct, 2016 | 8.3 MB | STP | |
| M-Drawing – MD | MCAD FC A1 IP20 | 01 Oct, 2016 | 1.5 MB | ||
| M-Drawing – MD | MCAD FC A1 IP20 A | ||||
| M-Drawing – MD | MCAD FC A1 IP20 A | 01 Oct, 2016 | 2.1 MB | JPG | |
| M-Drawing – MD | MCAD FC A1 IP20 A | 01 Oct, 2016 | 2.9 MB | DXF | |
| M-Drawing – MD | MCAD FC A1 IP20 A | 01 Oct, 2016 | 8.9 MB | STP | |
| M-Drawing – MD | MCAD FC A1 IP20 A | 01 Oct, 2016 | 1.5 MB | ||
| M-Drawing – MD | MCAD FC A1 IP21 | ||||
| M-Drawing – MD | MCAD FC A1 IP21 | 01 Oct, 2016 | 2.2 MB | JPG | |
| M-Drawing – MD | MCAD FC A1 IP21 | 01 Oct, 2016 | 2.4 MB | DXF | |
| M-Drawing – MD | MCAD FC A1 IP21 | 01 Oct, 2016 | 7.4 MB | STP | |
| M-Drawing – MD | MCAD FC A1 IP21 | 01 Oct, 2016 | 1.5 MB | ||
| M-Drawing – MD | MCAD FC A1 IP21 B | ||||
| M-Drawing – MD | MCAD FC A1 IP21 B | 01 Oct, 2016 | 2.2 MB | JPG | |
| M-Drawing – MD | MCAD FC A1 IP21 B | 01 Oct, 2016 | 2.5 MB | DXF | |
| M-Drawing – MD | MCAD FC A1 IP21 B | 01 Oct, 2016 | 7.6 MB | STP | |
| M-Drawing – MD | MCAD FC A1 IP21 B | 01 Oct, 2016 | 1.5 MB | ||
| M-Drawing – MD | MCAD FC A2 IP20 | ||||
| M-Drawing – MD | MCAD FC A2 IP20 | 01 Oct, 2016 | 2.1 MB | JPG | |
| M-Drawing – MD | MCAD FC A2 IP20 | 01 Oct, 2016 | 5.5 MB | DXF | |
| M-Drawing – MD | MCAD FC A2 IP20 | 01 Oct, 2016 | 16.9 MB | STP | |
| M-Drawing – MD | MCAD FC A2 IP20 | 01 Oct, 2016 | 1.8 MB | ||
| M-Drawing – MD | MCAD FC A2 IP20 AB | ||||
| M-Drawing – MD | MCAD FC A2 IP20 AB | 01 Oct, 2016 | 2.2 MB | JPG | |
| M-Drawing – MD | MCAD FC A2 IP20 AB | 01 Oct, 2016 | 7.3 MB | DXF | |
| M-Drawing – MD | MCAD FC A2 IP20 AB | 01 Oct, 2016 | 22.2 MB | STP | |
| M-Drawing – MD | MCAD FC A2 IP20 AB | 01 Oct, 2016 | 1.9 MB | ||
| M-Drawing – MD | MCAD FC A2 IP20 B | ||||
| M-Drawing – MD | MCAD FC A2 IP20 B | 01 Oct, 2016 | 2.1 MB | JPG | |
| M-Drawing – MD | MCAD FC A2 IP20 B | 01 Oct, 2016 | 5.6 MB | DXF | |
| M-Drawing – MD | MCAD FC A2 IP20 B | 01 Oct, 2016 | 17.1 MB | STP | |
| M-Drawing – MD | MCAD FC A2 IP20 B | 01 Oct, 2016 | 1.8 MB | ||
| M-Drawing – MD | MCAD FC A2 IP20 C | ||||
| M-Drawing – MD | MCAD FC A2 IP20 C | 01 Oct, 2016 | 2.2 MB | JPG | |
| M-Drawing – MD | MCAD FC A2 IP20 C | 01 Oct, 2016 | 6.0 MB | DXF | |
| M-Drawing – MD | MCAD FC A2 IP20 C | 01 Oct, 2016 | 18.4 MB | STP | |
| M-Drawing – MD | MCAD FC A2 IP20 C | 01 Oct, 2016 | 1.9 MB | ||
| M-Drawing – MD | MCAD FC A2 IP21 | ||||
| M-Drawing – MD | MCAD FC A2 IP21 | 19 Oct, 2016 | 2.8 MB | JPG | |
| M-Drawing – MD | MCAD FC A2 IP21 | 19 Oct, 2016 | 2.5 MB | DXF | |
| M-Drawing – MD | MCAD FC A2 IP21 | 19 Oct, 2016 | 7.8 MB | STP | |
| M-Drawing – MD | MCAD FC A2 IP21 | 19 Oct, 2016 | 1.6 MB | ||
| M-Drawing – MD | MCAD FC A2 IP21 B | ||||
| M-Drawing – MD | MCAD FC A2 IP21 B | 01 Oct, 2016 | 2.8 MB | JPG | |
| M-Drawing – MD | MCAD FC A2 IP21 B | 01 Oct, 2016 | 2.6 MB | DXF | |
| M-Drawing – MD | MCAD FC A2 IP21 B | 01 Oct, 2016 | 8.1 MB | STP | |
| M-Drawing – MD | MCAD FC A2 IP21 B | 01 Oct, 2016 | 1.6 MB | ||
| M-Drawing – MD | MCAD FC A3 IP20 | ||||
| M-Drawing – MD | MCAD FC A3 IP20 | 19 Oct, 2016 | 2.2 MB | JPG | |
| M-Drawing – MD | MCAD FC A3 IP20 | 19 Oct, 2016 | 3.8 MB | DXF | |
| M-Drawing – MD | MCAD FC A3 IP20 | 19 Oct, 2016 | 11.5 MB | STP | |
| M-Drawing – MD | MCAD FC A3 IP20 | 19 Oct, 2016 | 1.7 MB | ||
| M-Drawing – MD | MCAD FC A3 IP20 AB | ||||
| M-Drawing – MD | MCAD FC A3 IP20 AB | 01 Oct, 2016 | 2.3 MB | JPG | |
| M-Drawing – MD | MCAD FC A3 IP20 AB | 01 Oct, 2016 | 3.7 MB | DXF | |
| M-Drawing – MD | MCAD FC A3 IP20 AB | 01 Oct, 2016 | 11.4 MB | STP | |
| M-Drawing – MD | MCAD FC A3 IP20 AB | 01 Oct, 2016 | 1.7 MB | ||
| M-Drawing – MD | MCAD FC A3 IP20 ABC | ||||
| M-Drawing – MD | MCAD FC A3 IP20 ABC | 01 Oct, 2016 | 3.4 MB | JPG | |
| M-Drawing – MD | MCAD FC A3 IP20 ABC | 01 Oct, 2016 | 8.3 MB | DXF | |
| M-Drawing – MD | MCAD FC A3 IP20 ABC | 01 Oct, 2016 | 25.1 MB | STP | |
| M-Drawing – MD | MCAD FC A3 IP20 ABC | 01 Oct, 2016 | 2.1 MB | ||
| M-Drawing – MD | MCAD FC A3 IP20 B | ||||
| M-Drawing – MD | MCAD FC A3 IP20 B | 01 Oct, 2016 | 2.2 MB | JPG | |
| M-Drawing – MD | MCAD FC A3 IP20 B | 01 Oct, 2016 | 3.6 MB | DXF | |
| M-Drawing – MD | MCAD FC A3 IP20 B | 01 Oct, 2016 | 11.1 MB | STP | |
| M-Drawing – MD | MCAD FC A3 IP20 B | 01 Oct, 2016 | 1.7 MB | ||
| M-Drawing – MD | MCAD FC A3 IP20 C | ||||
| M-Drawing – MD | MCAD FC A3 IP20 C | 01 Oct, 2016 | 3.2 MB | JPG | |
| M-Drawing – MD | MCAD FC A3 IP20 C | 01 Oct, 2016 | 6.5 MB | DXF | |
| M-Drawing – MD | MCAD FC A3 IP20 C | 01 Oct, 2016 | 19.7 MB | STP | |
| M-Drawing – MD | MCAD FC A3 IP20 C | 01 Oct, 2016 | 2.0 MB | ||
| M-Drawing – MD | MCAD FC A3 IP21 | ||||
| M-Drawing – MD | MCAD FC A3 IP21 | 01 Oct, 2016 | 3.0 MB | JPG | |
| M-Drawing – MD | MCAD FC A3 IP21 | 01 Oct, 2016 | 2.8 MB | DXF | |
| M-Drawing – MD | MCAD FC A3 IP21 | 01 Oct, 2016 | 8.7 MB | STP | |
| M-Drawing – MD | MCAD FC A3 IP21 | 01 Oct, 2016 | 1.6 MB | ||
| M-Drawing – MD | MCAD FC B1 IP21 | ||||
| M-Drawing – MD | MCAD FC B1 IP21 | 01 Oct, 2016 | 2.2 MB | JPG | |
| M-Drawing – MD | MCAD FC B1 IP21 | 01 Oct, 2016 | 2.1 MB | ||
| M-Drawing – MD | MCAD FC B1 IP21 | 01 Oct, 2016 | 4.4 MB | DXF | |
| M-Drawing – MD | MCAD FC B1 IP21 | 01 Oct, 2016 | 59.6 MB | STP | |
| M-Drawing – MD | MCAD FC B1 IP21 WITH DISCONNECTOR | ||||
| M-Drawing – MD | MCAD FC B1 IP21 WITH DISCONNECTOR | 01 Oct, 2016 | 2.3 MB | JPG | |
| M-Drawing – MD | MCAD FC B1 IP21 WITH DISCONNECTOR | 01 Oct, 2016 | 2.2 MB | ||
| M-Drawing – MD | MCAD FC B1 IP21 WITH DISCONNECTOR | 01 Oct, 2016 | 4.5 MB | DXF | |
| M-Drawing – MD | MCAD FC B1 IP21 WITH DISCONNECTOR | 01 Oct, 2016 | 60.2 MB | STP | |
| M-Drawing – MD | MCAD FC B1 IP66 WITH DISCONNECTOR | ||||
| M-Drawing – MD | MCAD FC B1 IP66 WITH DISCONNECTOR | 01 Oct, 2016 | 2.3 MB | JPG | |
| M-Drawing – MD | MCAD FC B1 IP66 WITH DISCONNECTOR | 01 Oct, 2016 | 2.3 MB | ||
| M-Drawing – MD | MCAD FC B1 IP66 WITH DISCONNECTOR | 01 Oct, 2016 | 4.8 MB | DXF | |
| M-Drawing – MD | MCAD FC B1 IP66 WITH DISCONNECTOR | 01 Oct, 2016 | 65.7 MB | STP | |
| M-Drawing – MD | MCAD FC B2 IP21 WITH DISCONNECTOR | ||||
| M-Drawing – MD | MCAD FC B2 IP21 WITH DISCONNECTOR | 01 Sep, 2016 | 2.4 MB | JPG | |
| M-Drawing – MD | MCAD FC B2 IP21 WITH DISCONNECTOR | 01 Sep, 2016 | 2.3 MB | ||
| M-Drawing – MD | MCAD FC B2 IP21 WITH DISCONNECTOR | 01 Sep, 2016 | 5.0 MB | DXF | |
| M-Drawing – MD | MCAD FC B2 IP21 WITH DISCONNECTOR | 01 Sep, 2016 | 65.2 MB | STP | |
| M-Drawing – MD | MCAD FC B2 IP21/55/66 | ||||
| M-Drawing – MD | MCAD FC B2 IP21/55/66 | 29 Jun, 2016 | 2.4 MB | JPG | |
| M-Drawing – MD | MCAD FC B2 IP21/55/66 | 29 Jun, 2016 | 64.8 MB | STP | |
| M-Drawing – MD | MCAD FC B2 IP21/55/66 | 29 Jun, 2016 | 2.2 MB | ||
| M-Drawing – MD | MCAD FC B2 IP21/55/66 | 29 Jun, 2016 | 5.0 MB | DXF | |
| M-Drawing – MD | MCAD FC B3 IP20 | ||||
| M-Drawing – MD | MCAD FC B3 IP20 | 29 Jun, 2016 | 1.6 MB | JPG | |
| M-Drawing – MD | MCAD FC B3 IP20 | 29 Jun, 2016 | 10.9 MB | STP | |
| M-Drawing – MD | MCAD FC B3 IP20 | 29 Jun, 2016 | 2.8 MB | DXF | |
| M-Drawing – MD | MCAD FC B3 IP20 | 29 Jun, 2016 | 1.7 MB | ||
| M-Drawing – MD | MCAD FC B4 IP20 | ||||
| M-Drawing – MD | MCAD FC B4 IP20 | 01 Sep, 2016 | 2.0 MB | ||
| M-Drawing – MD | MCAD FC B4 IP20 | 01 Sep, 2016 | 2.4 MB | JPG | |
| M-Drawing – MD | MCAD FC B4 IP20 | 01 Sep, 2016 | 6.1 MB | DXF | |
| M-Drawing – MD | MCAD FC B4 IP20 | 01 Sep, 2016 | 18.6 MB | STP | |
| M-Drawing – MD | MCAD FC B4 IP21 | ||||
| M-Drawing – MD | MCAD FC B4 IP21 | 01 Sep, 2016 | 2.0 MB | ||
| M-Drawing – MD | MCAD FC B4 IP21 | 01 Sep, 2016 | 2.1 MB | JPG | |
| M-Drawing – MD | MCAD FC B4 IP21 | 01 Sep, 2016 | 8.4 MB | DXF | |
| M-Drawing – MD | MCAD FC B4 IP21 | 01 Sep, 2016 | 24.8 MB | STP | |
| M-Drawing – MD | MCAD FC C1 IP21/55/66 with disconnector | ||||
| M-Drawing – MD | MCAD FC C1 IP21/55/66 with disconnector | 29 Jun, 2016 | 2.2 MB | ||
| M-Drawing – MD | MCAD FC C1 IP21/55/66 with disconnector | 29 Jun, 2016 | 2.4 MB | JPG | |
| M-Drawing – MD | MCAD FC C1 IP21/55/66 with disconnector | 29 Jun, 2016 | 4.7 MB | DXF | |
| M-Drawing – MD | MCAD FC C1 IP21/55/66 with disconnector | 29 Jun, 2016 | 65.2 MB | STP | |
| M-Drawing – MD | MCAD FC C2 IP21 | ||||
| M-Drawing – MD | MCAD FC C2 IP21 | 16 Feb, 2018 | 6.3 MB | ||
| M-Drawing – MD | MCAD FC C2 IP21 | 16 Feb, 2018 | 1.8 MB | JPG | |
| M-Drawing – MD | MCAD FC C2 IP21 | 16 Feb, 2018 | 1.8 MB | JPG | |
| M-Drawing – MD | MCAD FC C2 IP21 | 16 Feb, 2018 | 22.4 MB | DOC | |
| M-Drawing – MD | MCAD FC C3 IP20 | ||||
| M-Drawing – MD | MCAD FC C3 IP20 | 01 Sep, 2016 | 2.6 MB | JPG | |
| M-Drawing – MD | MCAD FC C3 IP20 | 01 Sep, 2016 | 2.7 MB | ||
| M-Drawing – MD | MCAD FC C3 IP20 | 01 Sep, 2016 | 14.0 MB | DXF | |
| M-Drawing – MD | MCAD FC C3 IP20 | 01 Sep, 2016 | 21.4 MB | STP | |
| M-Drawing – MD | MCAD FC C3 IP20 OPTION | ||||
| M-Drawing – MD | MCAD FC C3 IP20 OPTION | 01 Sep, 2016 | 2.9 MB | ||
| M-Drawing – MD | MCAD FC C3 IP20 OPTION | 01 Sep, 2016 | 2.7 MB | JPG | |
| M-Drawing – MD | MCAD FC C3 IP20 OPTION | 01 Sep, 2016 | 15.4 MB | DXF | |
| M-Drawing – MD | MCAD FC C3 IP20 OPTION | 01 Sep, 2016 | 46.7 MB | STP | |
| M-Drawing – MD | MCAD FC C3 IP21 | ||||
| M-Drawing – MD | MCAD FC C3 IP21 | 01 Sep, 2016 | 2.3 MB | JPG | |
| M-Drawing – MD | MCAD FC C3 IP21 | 01 Sep, 2016 | 2.2 MB | ||
| M-Drawing – MD | MCAD FC C3 IP21 | 01 Sep, 2016 | 11.6 MB | DXF | |
| M-Drawing – MD | MCAD FC C3 IP21 | 01 Sep, 2016 | 34.3 MB | STP | |
| M-Drawing – MD | MCAD FC C4 IP20 | ||||
| M-Drawing – MD | MCAD FC C4 IP20 | 01 Sep, 2016 | 3.2 MB | ||
| M-Drawing – MD | MCAD FC C4 IP20 | 01 Sep, 2016 | 2.9 MB | JPG | |
| M-Drawing – MD | MCAD FC C4 IP20 | 01 Sep, 2016 | 16.8 MB | STP | |
| M-Drawing – MD | MCAD FC C4 IP20 | 01 Sep, 2016 | 11.9 MB | DXF | |
| M-Drawing – MD | MCAD FC C4 IP20 OPTION | ||||
| M-Drawing – MD | MCAD FC C4 IP20 OPTION | 01 Sep, 2016 | 3.3 MB | ||
| M-Drawing – MD | MCAD FC C4 IP20 OPTION | 01 Sep, 2016 | 3.0 MB | JPG | |
| M-Drawing – MD | MCAD FC C4 IP20 OPTION | 01 Sep, 2016 | 19.6 MB | DXF | |
| M-Drawing – MD | MCAD FC C4 IP20 OPTION | 01 Sep, 2016 | 59.3 MB | STP | |
| M-Drawing – MD | MCAD FC C4 IP21 | ||||
| M-Drawing – MD | MCAD FC C4 IP21 | 01 Sep, 2016 | 2.3 MB | ||
| M-Drawing – MD | MCAD FC C4 IP21 | 01 Sep, 2016 | 3.0 MB | JPG | |
| M-Drawing – MD | MCAD FC C4 IP21 | 01 Sep, 2016 | 18.2 MB | DXF | |
| M-Drawing – MD | MCAD FC C4 IP21 | 01 Sep, 2016 | 54.8 MB | STP | |
| M-Drawing – MD | MCAD FC D1h 177r0374 | ||||
| M-Drawing – MD | MCAD FC D1h 177r0374 | 01 Nov, 2017 | 489.0 KB | ||
| M-Drawing – MD | MCAD FC D1h 177r0374 | 01 Nov, 2017 | 1.6 MB | DXF | |
| M-Drawing – MD | MCAD FC D1h 177r0374 | 01 Nov, 2017 | 1.2 MB | DXF | |
| M-Drawing – MD | MCAD FC D1h 177r0374 | 01 Nov, 2017 | 144.6 KB | DXF | |
| M-Drawing – MD | MCAD FC D2h 177r0375 | ||||
| M-Drawing – MD | MCAD FC D2h 177r0375 | 01 Jun, 2011 | 675.1 KB | ||
| M-Drawing – MD | MCAD FC D2h 177r0375 | 01 Jun, 2011 | 2.1 MB | DXF | |
| M-Drawing – MD | MCAD FC D2h 177r0375 | 01 Jun, 2011 | 1.4 MB | DXF | |
| M-Drawing – MD | MCAD FC D2h 177r0375 | 01 Jun, 2011 | 125.2 KB | DXF | |
| M-Drawing – MD | MCAD FC D3h 177r0339 | ||||
| M-Drawing – MD | MCAD FC D3h 177r0339 | 01 Jun, 2011 | 1.1 MB | ||
| M-Drawing – MD | MCAD FC D3h 177r0339 | 01 Jun, 2011 | 1.2 MB | DXF | |
| M-Drawing – MD | MCAD FC D3h 177r0339 | 01 Jun, 2011 | 2.2 MB | DXF | |
| M-Drawing – MD | MCAD FC D3h 177r0339 | 01 Jun, 2011 | 1.9 MB | DXF | |
| M-Drawing – MD | MCAD FC D3h 177r0339 | 01 Jun, 2011 | 129.3 KB | DXF | |
| M-Drawing – MD | MCAD FC D3h 177r0339 | 01 Jun, 2011 | 26.9 MB | STP | |
| M-Drawing – MD | MCAD FC D4h 177r0340 | ||||
| M-Drawing – MD | MCAD FC D4h 177r0340 | 01 Jun, 2011 | 1.0 MB | ||
| M-Drawing – MD | MCAD FC D4h 177r0340 | 01 Jun, 2011 | 34.9 MB | STP | |
| M-Drawing – MD | MCAD FC D4h 177r0340 | 01 Jun, 2011 | 1.7 MB | DXF | |
| M-Drawing – MD | MCAD FC D4h 177r0340 | 01 Jun, 2011 | 2.6 MB | DXF | |
| M-Drawing – MD | MCAD FC D4h 177r0340 | 01 Jun, 2011 | 3.0 MB | DXF | |
| M-Drawing – MD | MCAD FC D4h 177r0340 | 01 Jun, 2011 | 127.0 KB | DXF | |
| M-Drawing – MD | MCAD FC D5h 177r0490 | ||||
| M-Drawing – MD | MCAD FC D5h 177r0490 | 01 Sep, 2012 | 1.4 MB | ||
| M-Drawing – MD | MCAD FC D5h 177r0490 | 01 Sep, 2012 | 2.2 MB | DXF | |
| M-Drawing – MD | MCAD FC D5h 177r0490 | 01 Sep, 2012 | 2.4 MB | DXF | |
| M-Drawing – MD | MCAD FC D5h 177r0490 | 01 Sep, 2012 | 2.0 MB | DXF | |
| M-Drawing – MD | MCAD FC D5h 177r0490 | 01 Sep, 2012 | 48.5 MB | STP | |
| M-Drawing – MD | MCAD FC D5h 177r0490 | 01 Sep, 2012 | 2.2 MB | DXF | |
| M-Drawing – MD | MCAD FC D5h 177r0490 | 01 Sep, 2012 | 130.4 KB | DXF | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | ||||
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 42.3 MB | STP | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 42.4 MB | STP | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 41.8 MB | STP | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 1.1 MB | ||
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 1.8 MB | DXF | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 1.5 MB | DXF | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 1.8 MB | DXF | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 1.7 MB | DXF | |
| M-Drawing – MD | MCAD FC D6h 177r0491 | 11 Apr, 2018 | 130.5 KB | DXF | |
| M-Drawing – MD | MCAD FC D7h 177r0492 | ||||
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 2.8 MB | ||
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 3.0 MB | DXF | |
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 2.4 MB | DXF | |
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 6.9 MB | DXF | |
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 135.4 KB | DXF | |
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 40.7 MB | STP | |
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 3.0 MB | DXF | |
| M-Drawing – MD | MCAD FC D7h 177r0492 | 01 Aug, 2016 | 2.8 MB | DXF | |
| M-Drawing – MD | MCAD FC D8h 177r0493 | ||||
| M-Drawing – MD | MCAD FC D8h 177r0493 | 01 Aug, 2016 | 44.8 MB | STP | |
| M-Drawing – MD | MCAD FC D8h 177r0493 | 01 Aug, 2016 | 44.7 MB | STP | |
| M-Drawing – MD | MCAD FC D8h 177r0493 | 01 Aug, 2016 | 46.5 MB | STP | |
| M-Drawing – MD | MCAD FC D8h 177r0493 | 01 Aug, 2016 | 2.3 MB | ||
| M-Drawing – MD | MCAD FC E1h IP54 | ||||
| M-Drawing – MD | MCAD FC E1h IP54 | 01 Jan, 2017 | 5.6 MB | DXF | |
| M-Drawing – MD | MCAD FC E1h IP54 | 01 Jan, 2017 | 1.5 MB | ||
| M-Drawing – MD | MCAD FC E1h IP54 | 01 Jan, 2017 | 47.1 MB | STP | |
| M-Drawing – MD | MCAD FC E2h IP54 | ||||
| M-Drawing – MD | MCAD FC E2h IP54 | 01 Jan, 2017 | 5.7 MB | DXF | |
| M-Drawing – MD | MCAD FC E2h IP54 | 01 Jan, 2017 | 1.6 MB | ||
| M-Drawing – MD | MCAD FC E2h IP54 | 01 Jan, 2017 | 47.6 MB | STP | |
| M-Drawing – MD | MCAD FC E3h IP20 | ||||
| M-Drawing – MD | MCAD FC E3h IP20 | 01 Jan, 2017 | 6.1 MB | DXF | |
| M-Drawing – MD | MCAD FC E3h IP20 | 01 Jan, 2017 | 1.7 MB | ||
| M-Drawing – MD | MCAD FC E3h IP20 | 01 Jan, 2017 | 28.3 MB | STP | |
| M-Drawing – MD | MCAD FC E3h IP20 | 01 Jan, 2017 | 30.0 MB | STP | |
| M-Drawing – MD | MCAD FC E3h IP20 | 01 Jan, 2017 | 28.8 MB | STP | |
| E-Drawing – ED | Wiring Schematic FC 103, FC 302 | 01 Jun, 2015 | 192.5 KB | ||
Software
| Type | Name | Updated | Version | Status | Download | File type | |
| SOFTWARE TOOLS | VLT® AutomationDrive FC 301 Simulator | 23 Apr, 2018 | 8.23 | Released | 3.0 MB | ZIP | |
| SOFTWARE TOOLS | VLT® AutomationDrive FC 302 Simulator | 23 Apr, 2018 | 8.23 | Released | 3.0 MB | ZIP | |
| VLT MCT 10 SUPPORT FILE | VLT® AutomationDrive Support File v8.23 | ||||||
| VLT MCT 10 SUPPORT FILE | VLT® AutomationDrive Support File v8.23 | 23 Apr, 2018 | 8.23 | Released | 940.3 KB | ZIP | |
| VLT MCT 10 SUPPORT FILE | VLT® AutomationDrive Support File v8.12 | 26 Mar, 2018 | 8.12 | Released | 935.1 KB | ZIP | |
| VLT MCT 10 SUPPORT FILE | VLT® AutomationDrive Support File v8.10 | 27 Nov, 2017 | 8.10 | Released | 935.2 KB | ZIP | |
| VLT MCT 10 SUPPORT FILE | VLT® AutomationDrive Support File v8.03 | 16 Oct, 2017 | 8.03 | Released | 967.7 KB | ZIP | |
| FIELDBUS CONFIG FILES | VLT® Drives DeviceNet EDS | 02 Feb, 2011 | Released | 2.0 MB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® Drives EtherNet/IP EDS | 26 Sep, 2013 | Released | 24.7 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® Drives PROFIBUS GSD | 03 Nov, 2010 | Released | 76.9 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® Drives PROFIBUS PCA Block | 19 Mar, 2008 | Released | 465.8 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® EtherNet/IP Add-on Instructions | 27 Sep, 2013 | Released | 443.0 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® MCA101 PROFIBUS GSD | 03 Nov, 2010 | Released | 76.9 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® MCA104 CANopen EDS | 23 Jun, 2014 | Released | 82.7 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® MCA120 PROFINET GSDML | 21 Feb, 2018 | Released | 719.2 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® MCA123 POWERLINK XDD | 02 Aug, 2013 | Released | 27.0 KB | ZIP | ||
| FIELDBUS CONFIG FILES | VLT® MCA124 EtherCAT XML | 17 Dec, 2012 | Released | 20.9 KB | ZIP | ||
| SOFTWARE TOOLS | VLT® Motion Control Tool MCT10 | 05 Oct, 2018 | 4.30 | Released | 686.0 MB | ZIP | |
| SOFTWARE TOOLS | VLT® Motion Control Tool MCT31 | 17 Oct, 2017 | 2.0.4 | Released | 25.2 MB | ZIP | |
Reviews
There are no reviews yet.
